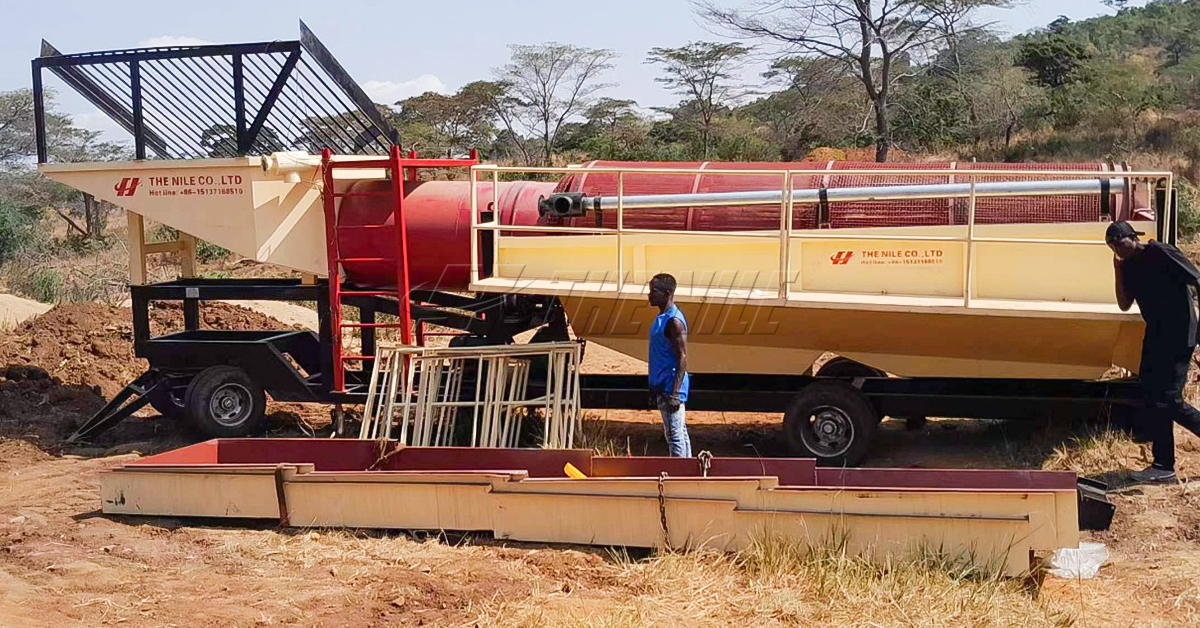

Portable gold trommel washing plant

Mobile gold washing plant, also known as portable gold washing machine, is a gold processing equipment that integrates feeding, screening, and chute gold selection. It is mainly composed of motor reducer, roller device, frame, single-layer or multi-layer screen, inlet and outlet, etc. Due to less investment, large output, and considerable economic value, small scale mobile gold washer machine is more suitable for geological exploration research, small gold mining areas with poor road conditions, and small-scale personal gold processing operations.

Easy ways to get the answers you need. Service Online

Mobile gold washing plant, also known as portable gold washing machine, is a gold processing equipment that integrates feeding, screening, and chute gold selection. It is mainly composed of motor reducer, roller device, frame, single-layer or multi-layer screen, inlet and outlet, etc.

Due to less investment, large output, and considerable economic value, small scale mobile gold washer machine is more suitable for geological exploration research, small gold mining areas with poor road conditions, and small-scale personal gold processing operations.

Structure

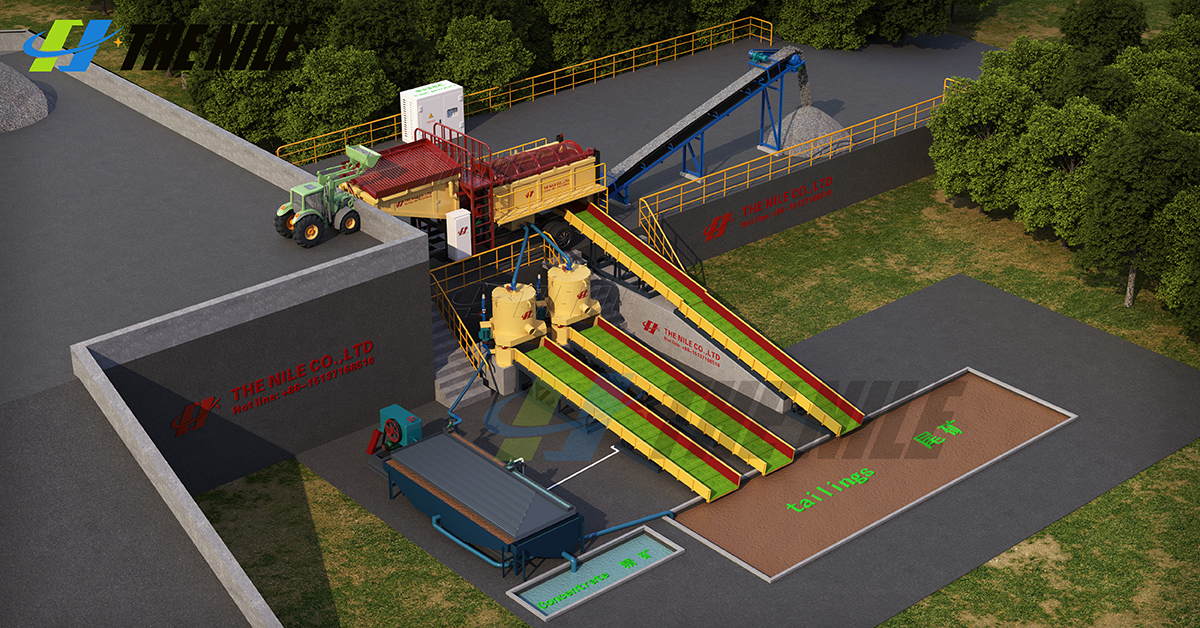

The portable gold washing station integrates mining and gold beneficiation operations, including mining systems, beneficiation equipment, water supply systems, tailings treatment systems, power supplies, etc.

Working principle

When working, the motor is connected to the roller device through the reducer through the coupling, and drives the roller device to rotate around its axis. After the material enters the drum device, due to the inclination and rotation of the drum device, the material on the screen surface is turned and rolled, so that the material is discharged through the screen mesh of the outer circle of the drum, and the unqualified material is discharged through the end of the drum.

Due to the turning and tumbling of the material in the drum, the material stuck in the sieve hole can be ejected to prevent the sieve hole from being blocked. Its mobility is particularly suited to moving up and down the flood plains, moving factories to ore rather than digging and transporting ore to stationary factories.

Advantages of drum scrubber:

1. Equipped with tires that can be moved to the work area as needed

2. Adopt special screen, high screening efficiency and long service life

3. The whole machine has high reliability and less one-time investment

4. The sieve hole is not easy to block, and the multi-layer sieve plate is easy to replace

5. The front end of the heavy-duty drum screen is equipped with a scraper to make the material easier to disperse

6. Different mesh sizes are available

Application fields:

1. Screening, washing and enrichment of alluvial gold and river placer gold

2. Used for grading large and small stones in quarries and separating soil and stone powder

3. Separation of sand and gravel in sand and gravel field

4. In the coal industry, it is used for the separation of lump coal and coal powder and coal washing (a component of coal washing machinery)

5. In the chemical industry and mineral processing industry, it is used for the classification of large and small lumps and the separation of powdery substances

Portable Trommel Gold Washing Plant（Vehicle）Parameters
Productivity(TPH)	Trommel Size	Motor Power	Matched Pump Data	Packaging Dimension(mm)	Generator Specifications
1-5	0.5X1.9m	1.5KW	1.5 inch；4HP	2500X1000X1200	Diesel Engine/Electric Motor
5-10	0.8X1.8m	3.0KW	2.0 inch，5.5KW	4000X1250X2200	20KW
20-30	1.2X2.8m	5.5KW	3.0 inch，15KW	5200X2000X2500	50KW
50	1.3X4.0m	7.5KW	4.0 inch；22KW	6800X2200X2800	65KW
100-150	1.5X4.5m	15KW	4.0 inch; 2 SETS of 22KW	10800X2200X3000	100KW
150-200	1.8X5.0m	18.5KW	4.0 inch; 3 SETS of 22KW	11900X2300X3500	200KW

This kind fo portable gold washing equipment can be used for gold recovery or diamond or gemstone recovery. At the same time, different gold processing selection treatment equipment can be equipped according to customers’ needs. The Nile Machinery can provide at least five different solutions for you, and the core products involve centrifugal gold concentrator, agitators chutes, sticky gold blankets, jigging machine, shaking table, etc.
