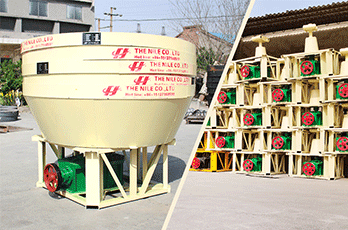

Wet Pan Mill

Wet Pan Mill is used for grinding gold ore, especailly small gold rock stone, which can grind into 100-150mesh. Many customers from Africa would like to import wet pan mill because of low cost and high productivity. The most important thing is that our customers can get pure gold directly after wet pan mill, which is suitable for people who want to begain small business.
Easy ways to get the answers you need. Service Online
Wet Pan Mill Working Principle

Main parts of wet pan mill are frame, basin, grinding roller, grinding base, speed reducers, motor and etc. Firstly, motor transmits power to speed reducer, then center driving shaft transmits into horizontal shaft, finally grinding roller will move counterclockwise and material will be ground into fine particle in the wet pan mill.

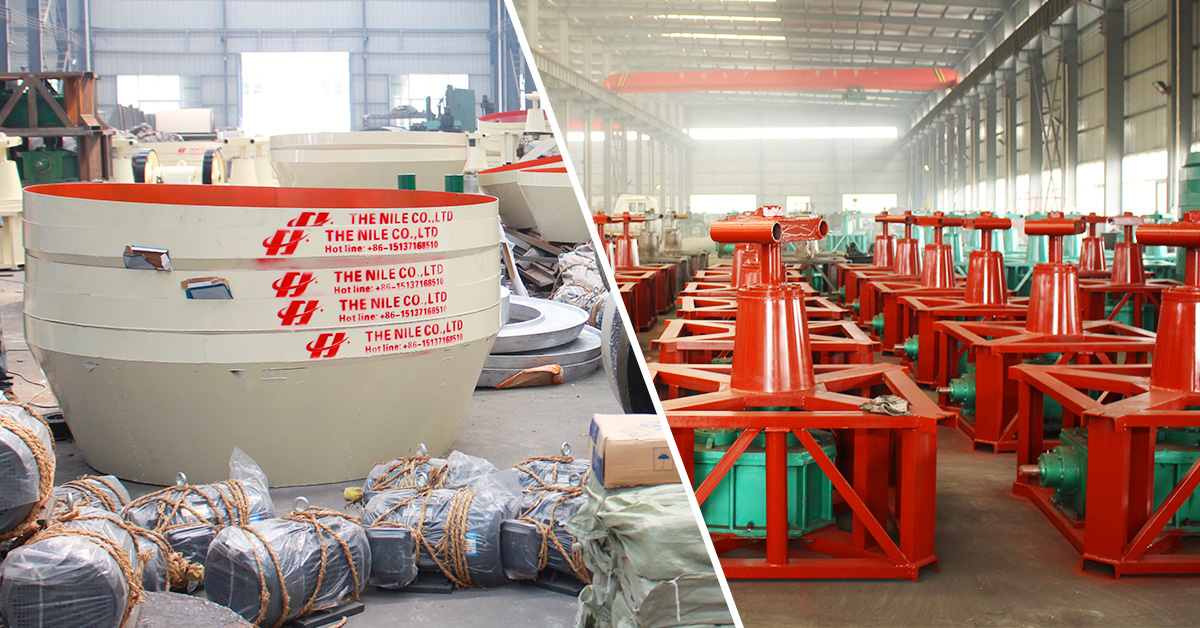

                                                                      wet pan grinding mill machine

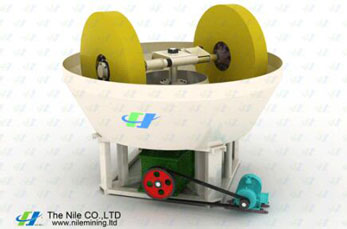

                                                                            gold wet pan mill  3D drawing



Wet Pan Mill Advantages

1.Smooth surface,no sand holes on the grinding roller
2.Siemens Brand Motor and ZWZ brand bearing
3.Mn-steel alloy material of grinding roller, and wearable&Longer service life






Wet Pan Mill Technical Data

Model Gauge (mm) Feed Size Engine power Rotation speed Weight
(mm) (kw) (RPM) (t)
1600A 1600×400×200×500±20 ≤25 30 10-12 14.5
1500A 1500×350×200×460±20 ≤25 22 10-12 12.3
1500B 1500×350×150×460±20 ≤25 18.5 10-12 11.3
1400A 1400×250×150×350±20 ≤25 15 10-12 10
1400B 1400×250×150×350±20 ≤25 15 10-12 8.5
1300A 1300×250×150×350±20 ≤25 11 10-12 8.5
1300B 1300×200×150×350±20 ≤25 11 10-12 7.5
1200A 1200×220×80×270±20 ≤25 7.5 12.5 5.5
1200B 1200×200×80×250±20 ≤25 7.5 12.5 5.0
1100B 1100×180×80×250±20 ≤25 5.5 12 4.0
