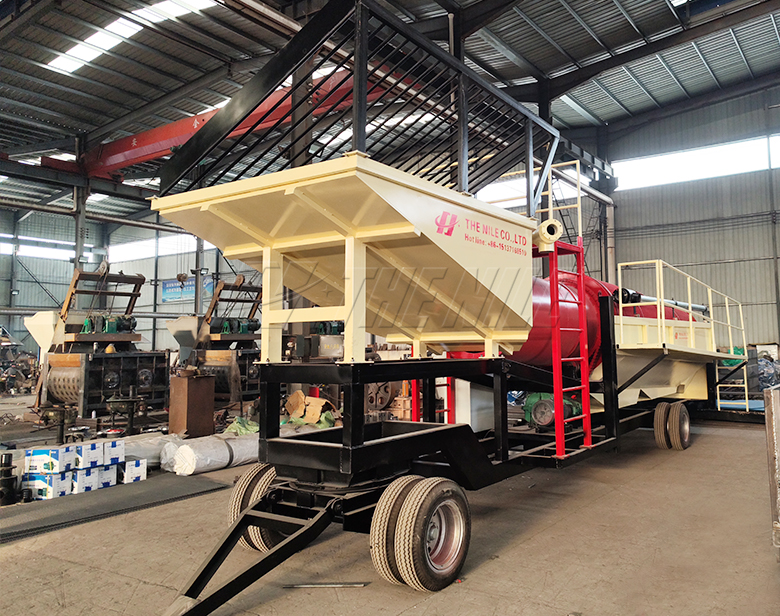

Mobile Trommel Gold Wash Plant
Mobile Gold Trommel is an integrated gold washing plant designed for efficient gold recovery at different mining sites. Its compact structure and lightweight design make it easy to transport, relocate, and install.
With high processing capacity, simple operation, reliable performance, and easy maintenance, it is suitable for a wide range of alluvial and placer gold mining applications.
Easy ways to get the answers you need. Service Online
Working Principle
Advantages
Placer Portable Gold Washing Plant is an integrated gold washing and recovery system specially designed for placer gold deposits. It combines screening, washing, gravity separation, and gold recovery into a compact and mobile unit.

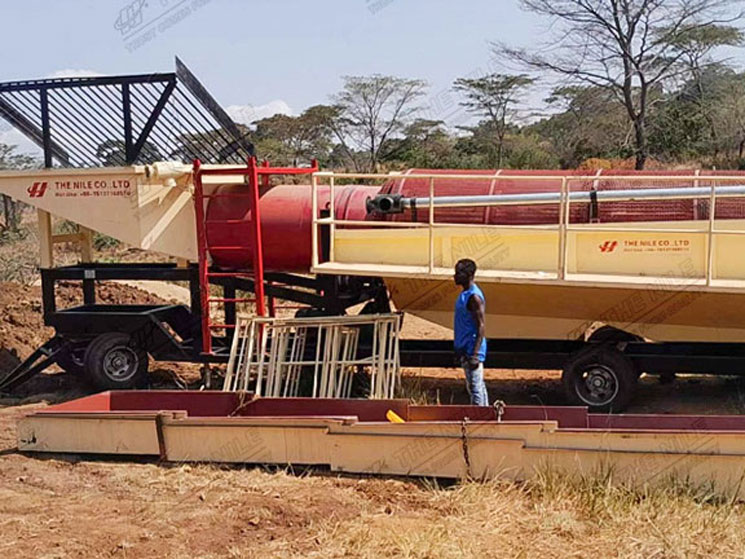

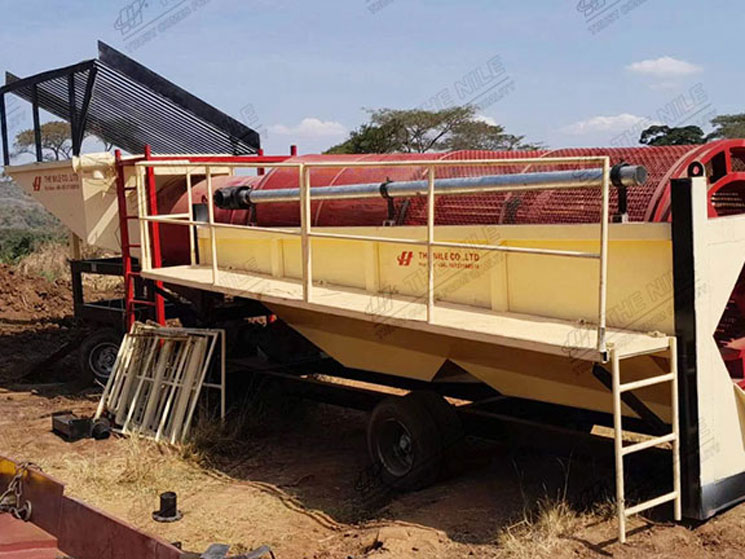

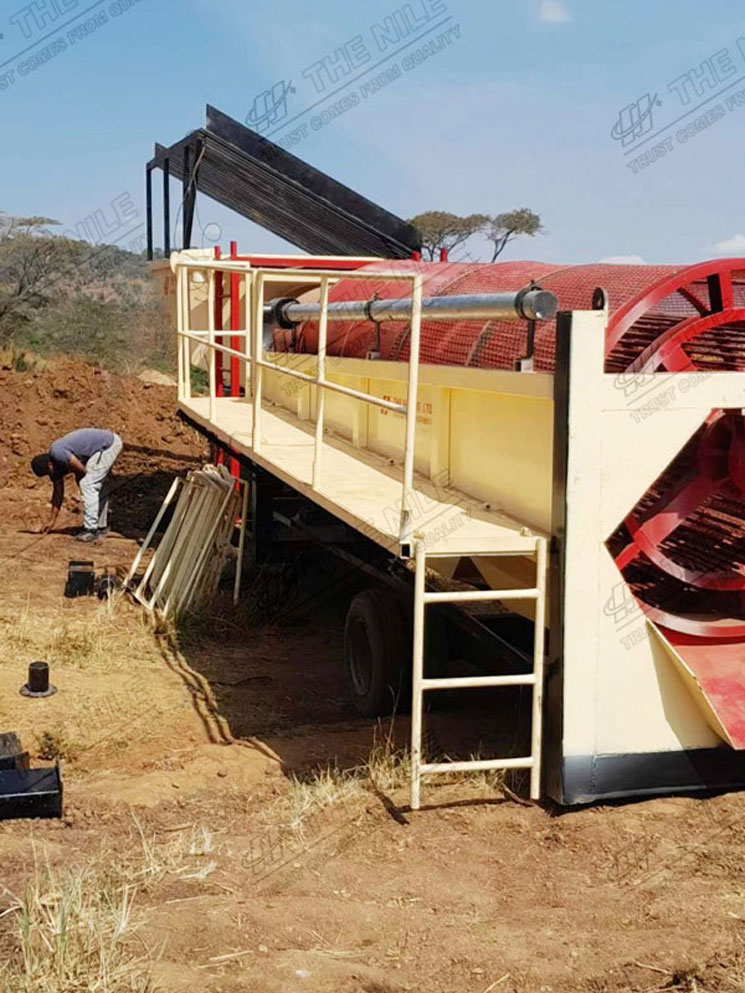

The plant is equipped with a wheel-type chassis, allowing it to be towed by a vehicle and easily transported between mining sites. Its integrated design simplifies installation and enables rapid deployment in remote or temporary mining operations.
The processing equipment can be configured according to the ore properties, gold particle size, and specific project requirements. Optional equipment includes fixed sluice boxes, vibrating sluices, centrifugal concentrators, shaking tables, amalgamators, and gold furnaces, allowing the plant to be customized for different placer gold recovery processes.
The plant is equipped with a wheel-type chassis, allowing it to be towed by a vehicle and easily transported between mining sites. Its integrated design simplifies installation and enables rapid deployment in remote or temporary mining operations.
The processing equipment can be configured according to the ore properties, gold particle size, and specific project requirements. Optional equipment includes fixed sluice boxes, vibrating sluices, centrifugal concentrators, shaking tables, amalgamators, and gold furnaces, allowing the plant to be customized for different placer gold recovery processes.
1. Easy to Move
The plant can be easily towed or relocated by a loader or excavator, making it convenient to move between different mining sites.
2. Quick Assembly & Disassembly
The plant is easy to assemble and disassemble, taking only about 30 minutes. It can be quickly relocated from one site to another.
3. Wide Processing Capacity
Processing capacity ranges from 5 to 300 tons per hour, meeting the requirements of different mining scales.
4. Efficient Water Use
Water consumption ranges from 200 to 600 m³/h, depending on the processing capacity and ore properties.
5. Low Power Consumption
The total installed power of the complete plant is approximately 30–60 kW, helping reduce operating costs.
6. High Gold Recovery Rate
The gold recovery rate can reach over 90%, depending on the ore properties, gold particle size, and processing conditions.
7. Customized Plant Design
We design and configure the placer gold washing plant according to your ore properties, processing capacity, site conditions, and project requirements.
The plant can be easily towed or relocated by a loader or excavator, making it convenient to move between different mining sites.
2. Quick Assembly & Disassembly
The plant is easy to assemble and disassemble, taking only about 30 minutes. It can be quickly relocated from one site to another.
3. Wide Processing Capacity
Processing capacity ranges from 5 to 300 tons per hour, meeting the requirements of different mining scales.
4. Efficient Water Use
Water consumption ranges from 200 to 600 m³/h, depending on the processing capacity and ore properties.
5. Low Power Consumption
The total installed power of the complete plant is approximately 30–60 kW, helping reduce operating costs.
6. High Gold Recovery Rate
The gold recovery rate can reach over 90%, depending on the ore properties, gold particle size, and processing conditions.
7. Customized Plant Design
We design and configure the placer gold washing plant according to your ore properties, processing capacity, site conditions, and project requirements.
| Mobile Trommel Gold Washing Plant（Vehicle）Parameters | |||||
| Productivity(TPH) | Trommel Size | Motor Power | Matched Pump Data | Packaging Dimension(mm) | Generator Specifications |
| 1-5 | 0.5X1.9m | 1.5KW | 1.5 inch；4HP | 2500X1000X1200 | Diesel Engine/Electric Motor |
| 5-10 | 0.8X1.8m | 3.0KW | 2.0 inch，5.5KW | 4000X1250X2200 | 20KW |
| 20-30 | 1.2X2.8m | 5.5KW | 3.0 inch，15KW | 5200X2000X2500 | 50KW |
| 50 | 1.3X4.0m | 7.5KW | 4.0 inch；22KW | 6800X2200X2800 | 65KW |
| 100-150 | 1.5X4.5m | 15KW | 4.0 inch; 2 SETS of 22KW | 10800X2200X3000 | 100KW |
| 150-200 | 1.8X5.0m | 18.5KW | 4.0 inch; 3 SETS of 22KW | 11900X2300X3500 | 200KW |
